The HTML5 Element DOM Interface

Mike Taylor, Opera Software

HTML5Living Standard

DOM4

Explosion!

Outline

  1. Element.id
  2. Element.classList
  3. Element.dataset
  4. Element.hidden
  5. Microdata (Element.*)
    • .itemType, .itemId, .itemRef, .itemProp, .properties, .itemValue

Element.id

Element.id

The value must be unique amongst all the IDs in the element's home subtree and must contain at least one character. The value must not contain any space characters.

Some examples

        <p id="#">Foo.
        <p id="##">Bar.
        <p id="♥">Baz.
        <p id="©">Inga.
        <p id="{}">Lorem.
        <p id="“‘’”">Ipsum.
        <p id="⌘⌥">Dolor.


Mother Effing
CSS Escapes

Element.classList

Element.class

The attribute, if specified, must have a value that is a set of space-separated tokens representing the various classes that the element belongs to.

DOMTokenLists

The DOMTokenList interface represents an interface to an underlying string that consists of a set of space-separated tokens.

DOMTokenList

        interface DOMTokenList {
          readonly attribute unsigned long length;
          getter DOMString? item(unsigned long index);
          boolean contains(DOMString token);
          void add(DOMString token);
          void remove(DOMString token);
          boolean toggle(DOMString token);
        };


DOMTokenList, aka Element.classList

        Element.classList.length
        Element.classList.item(index)
        Element.classList.contains()
        Element.classList.add()
        Element.classList.remove()
        Element.classList.toggle()

*View Source. Go crazy.

Element.dataset

Element.dataset

Returns a DOMStringMap object for the element's data-* attributes.

Hyphenated names become camel-cased.
For example, data-foo-bar="" becomes element.dataset.fooBar.

WTF is a DOMStringMap?

The DOMStringMap interface represents a set of name-value pairs.

data-foo=bar

DOMStringMap

        interface DOMStringMap {
          getter DOMString (DOMString name);
          setter void (DOMString name, DOMString value);
          creator void (DOMString name, DOMString value);
          deleter void (DOMString name);
        };


Element.dataset example

        <button data-text="Web Workers">W</button>
        function showText(element){
          someDiv.textContent = element.dataset.text;
        }


dataset demo

Element.hidden

Element.hidden

All HTML elements may have the hidden content attribute set. The hidden attribute is a boolean attribute. When specified on an element, it indicates that the element is not yet, or is no longer, relevant. User agents should not render elements that have the hidden attribute specified.

Element.hidden example

Microdata stuffs

Element level Microdata APIs

A mechanism for adding machine-readable annotations to documents, so that tools can extract trees of name-value pairs from the document.

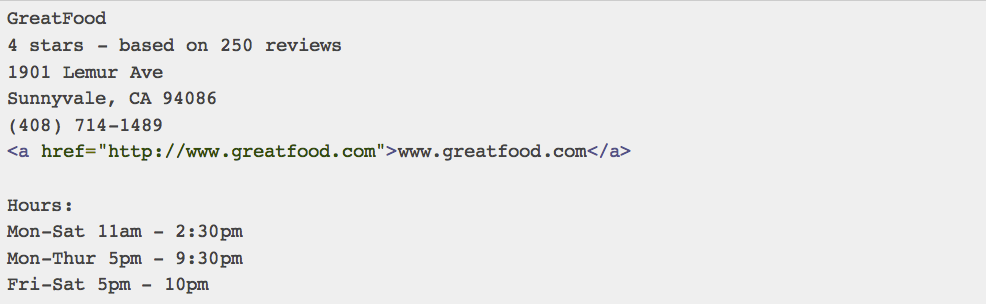

plain markup for a restaurant

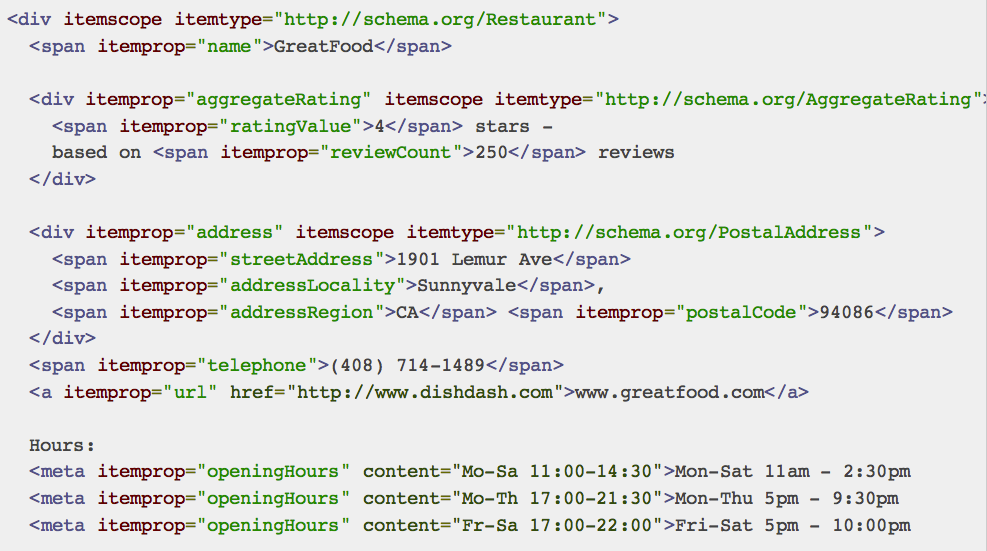

microdata-enhanced markup for a restaurant

Collections: HTMLCollections

        interface HTMLCollection {
          readonly attribute unsigned long length;
          getter Element? item(unsigned long index);
          getter object? namedItem(DOMString name);
        };


HTMLAllCollection, HTMLFormControlsCollection, HTMLOptionsCollection, HTMLPropertiesCollection

HTMLCollections: examples

        document.anchors
        document.applets
        document.forms
        document.images
        document.links
        document.embeds
        document.plugins

        formElement.elements
        selectElement.options
        tableElement.rows
        tableElement.tBodies
        tableRowElement.cells
        document.scripts
        document.all


HTMLPropertiesCollection

        var item = document.getItems("http://itemtype/URL")[0]
        item.properties.foo
        item.getValues()


Microdata and the Microdata DOM API, spec, demo

Thank You

Mike Taylor, Opera Software

Shower!
